Description

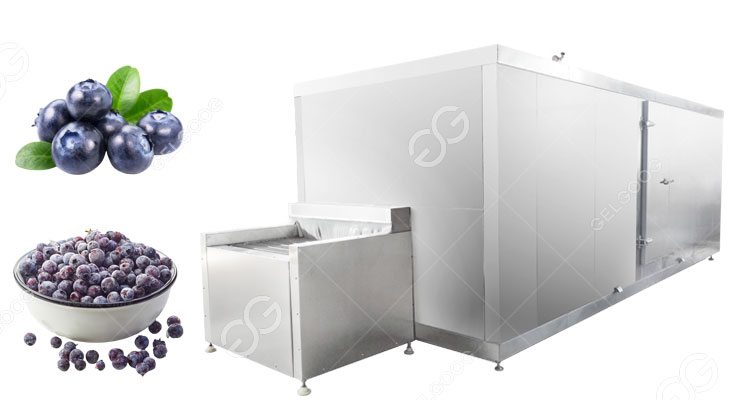

The blueberry indivlidual quick freezing machine is to freeze the fresh blueberries to -18 in a short period of time, and quickly move through the ice crystal formation belt to quickly lock the freshness and prevent the blueberries from losing water. In order to achieve no loss of nutrients, the appearance of the product remains unchanged, and the color is crystal clear. And the quick-frozen blueberries are more convenient to store and transport, break the blueberry origin restrictions, and help blueberry growers to obtain greater economic benefits! !
Blueberry IQF Freezer Advantages
1 High freezing efficiency
Large capacity, low power consumption, strong corrosion resistance, good thermal conductivity, high freezing efficiency and short time;
2 Long service life.
Adopt mesh belt chain transmission mechanism, low mechanical failure rate, high-strength chain sprocket, avoid chain deformation and breakage;
3 Reliable performance
The flat plate machine adopts a flat plate evaporator treated by a special process, which has high smoothness and good thermal conductivity, and is easy to operate;
4 Short freezing time
The overall flat plate heat transfer area is large, supplemented by the forced air cooling of the fan, the heat transfer efficiency is high, and the freezing time is short. Freeze fast;
IQF Freezer Parameter
| Models | YSD-500 | YSD-1000 | YSD-2000 |
| Capacity（kg/h） | 500 | 1000 | 2000 |
| Height of inlet and outlet | Inlet 1055mm/Outlet 835mm | ||
| Max Height | 2500mm | ||
| Sizes | 8000×2230×2500mm | 14000×2230×2500mm | 17000×2230×2500mm |
| Belt Width | 1280mm | 1280mm | 1280mm |
| Freezing Time | 5-25min（Adjustable） | ||
| Power(KW) | 18 | 31 | 41 |
Blueberry Freezing Machine Features
1. Longitudinal opposite blowing circulation air supply mode, arc-shaped air duct, to ensure that blueberries are frozen evenly and quickly.
2. All-aluminum alloy evaporator, variable fin spacing and large fins improve heat transfer efficiency and prolong the continuous working time of the equipment.
3. The inner and outer frame structure is food-grade stainless steel, and the part in contact with the mesh belt is made of molecular polyethylene to prolong the life of the equipment.
4. The tunnel-type quick-freezing machine adopts the international quick-freezing technology and frequency conversion speed regulation. Stainless steel mesh belt, high elastic stainless steel wire, smooth surface, strong bearing capacity; frequency converter steplessly adjusts the transmission speed.
5. The insulation board is covered with double-sided SUS304 stainless steel plate, made of rigid polyurethane foam. The density of the insulation board is 42kg/m3. It is installed in convex grooves and connected by eccentric hooks. The insulation effect is stronger. There are 5 access doors in the warehouse.
